SAV
Innovation & Technology.
At present, the company mainly provides customers with standard
permanent magnet synchronous motors, oil-cooled motors, high-
speed motors, refrigerant motors, vacuum motors, etc. with 2.2-
400KW power and 2T-24000 speed; At present, the products are
mainly used in air compressors, extruders, wire drawing machines,
water pumps, oil pumps, fans and other fields.
ABOUT
SAV.Ltd

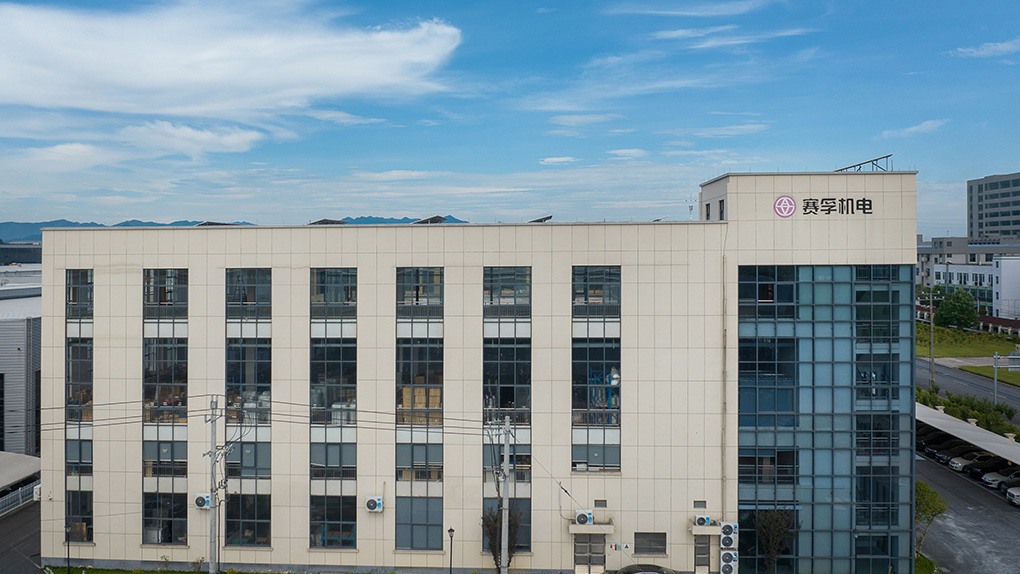

The company was founded in June 2010; It is located in Tianzihu Town, Anji County, the central area of the Yangtze
River Delta Industrial Cooperation Zone, covering an area of 16 acres and a plant of 16,100 square meters.
¥12100000

Investment

50000+

Annual output (sets)

16100M²

Plant area

Full service

Committed to providing customers with

Green and energy-saving electric drive system

Product
MORE
01
SAVO standard structure form liquid
-cooled permanent magnet motor

Power range : 15-315 KW

Speed range : 1000-4500 rpm

Mounting form : Non-standard

Ingress protection : IP55

Insulation rating : F grade

Energy efficiency rating : I grade/IE5以上

Cooling method : Shell liquid cooling

Temperature protection : Temperature protection switch (2 and 2 series) or built-in PT100

Applications : Air compressors, water pumps and other liquid cooling media

Merit : The liquid system of the system is used to cool the motor, reduce the loss of independent fans or coaxial blades, improve efficiency, and make the operating environment of the motor more stable and not affected by the ambient temperature

SAVO标准结构形式液冷永磁电机
02

SAVT series three-phase permanent
magnet synchronous motor

Power range : 2.2-450KW

Speed range : 750-4500rpm

Mounting form : B3/B35/B14

Ingress protection : IP55

Insulation rating : F grade

Energy efficiency rating : IE4/IE5 or above

Cooling method : Coaxial blade or independent fan

Temperature protection : Temperature protection switch (2 and 2 series) or built-in PT100

Applications: : Commonly used in air compressors, pumps, fans and other industrial fields Advantages: high efficiency, energy saving, stable speed, high power factor, strong versatility

SAVT系列三相永磁同步电机
03

SAVQ light load series permanent
magnet synchronous motor

Power range : 5.5-160KW

Speed range : 1500-3000rpm

Mounting form : B3/B5/B35

Ingress protection : IP55

Insulation rating : F grade

Energy efficiency rating : Level 1 /IE5 or above

Cooling method : Coaxial blade or independent fan

Temperature protection : Temperature protection switch (2 and 2 series) or built-in PT100

Applications : Commonly used in air compressors, pumps, fans and other industrial fields

Merit : High efficiency, energy saving, stable speed, high power factor, strong versatility, low price

SAVQ轻载系列永磁同步电动机
04

SAV-TBY4 Series electric motors

Power range : 11-400KW

Speed range : 500-3000rpm

Mounting form : B3/B5/B35

Ingress protection : IP55

Insulation rating : F grade

Energy efficiency rating : Level 1 /IE5 or above

Cooling method : Coaxial blade

Temperature protection : Temperature protection switch (2 and 2 series) or built-in PT100

Applications : It is suitable for all kinds of machine tools and other equipment in places with explosive environment gas (Ex db IIB T4 Gb) as driving power equipment

Merit : High efficiency, energy saving, stable speed, high power factor, strong versatility

SAV-TBY4系列电动机
05

SAVS Liquid-cooled permanent
magnet synchronous motor

Power range : 7.5-160KW

Speed range : 1500-4500rpm

Mounting form : The motor rotor is coaxial connected with the air compressor

Ingress protection : IP54-IP65

Insulation rating : F grade

Energy efficiency rating : Level I /IE5 or above

Cooling method : Shell liquid cooling

Temperature protection : Temperature protection switch (2 and 2 series) or built-in PT100

Applications : Air compressor, oil pump, water pump and other liquid cooling medium

Merit : The liquid system of the system is used to cool the motor, reduce the loss of independent fans or coaxial blades, improve efficiency, and make the operating environment of the motor more stable, not affected by the ambient temperature

SAVS液冷永磁同步电机
Scientific strength
ISO
ISO9001、ISO14001、ISO45001 Authentication
CE
CE Authentication
CCC
CCC Authentication
Ex防爆
Ex Explosion certification
国家高新技术企业认证
National high-tech enterprise certification

2012 Won the "Hangzhou Eagle Plan Enterprise"

2017 won the "Entrepreneurial Star" of Zhejiang Province

2018 passed the certification of "National High-tech Enterprise"

2023 won the certificate of Zhejiang Science and technology smes

|
CQC
CQC energy-saving certification
More than40
certificates of interest
